Botanical Relief Casting in Concrete
I’m not sure why I think everything is ‘better in concrete’ but here we go… I figured out a way make Botanical Relief Casting in Concrete so it can be beautiful forever!
And so the Casting Starts:
I though that maybe I could just use concrete in my pressed clay just like the plaster… Well, that did not end well – it would not come out. It may be that the concrete heats up during curing, or the oil base clay does not play well with concrete.
Anyways… I’m determined so I first made the master casting of plaster or Hydrocal casting and then make a reuseable mold of it. This way I could also make sure that the ‘masters’ (the ones used to make the molds) are quite perfect. I can fix any bubbles with some extra brushed on plaster mix and sand out any bumps. (video coming soon)
When I design the arrangement I like to ‘futz’ with how each leaf etc is placed. (that’s the artist control freak in me) It’s so much fun. I also decided I like Hydrocal much better than the cheap plaster. It will hold much better strength and has a much smoother finish with less dusting afterward, not to mention less tendancy of bubbles. There are sculpture supply or pottery supply places as well as amazon. Hydrocal is a mix of plaster & Portland cement, no wonder it is hard.
Choice of Plants:
So now when I take the dog for a walk you will see me bent over touching & feeling all kinds of leaves and plants. Yes, pretty well anything will print but the ones with a bit more definition of veins or thickness will work so much more dimensional. Flowers are very delicate and thin. The Allium blooms were like big ‘fireworks’ but did need a bit of thinning so to not be too deep into the clay. It may take a bit of experimentation. I often have a few flubs to get the hang of things… really. If you’d rather just buy one check out the ones I’ve cast so far
Before you make the mold:
Whether you use the plaster or the Hydrocal, the ‘master’ needs to be sealed before using a mold material. I know the hydrocal is really smooth but I did not want to chance anything sticking. I used a gloss finish ModPodge to seal and provide a non absorbent smooth shiny finish. Make sure to brush well so that the details are not filled with the ModPodge, thin coat as possible. Let dry well.
Mold Release Agent:
Some consideration should also be made for how the edges will be (before the outside barrier). I could make a large box to encase the entire master but I wanted to make a few molds so I decided to keep the mold as a flat shape so I put a barrier (masking take) around the shape I was casting for the mold. I can late place the mold into a shape for pouring
To be sure there is no sticking I use a mold release. I have made a Mold Release with Castor Oil and rubbing alcohol (about 1 : 5 ration). I have been loving it since it thin, no spraying toxic stuff around and I know what’s in it. The alcohol evaporates quickly so it leaves a thin coating.
The Magic of Mold Making Silicone:
Yes I have made plenty of molds with the cornstarch and silicone caulking but this time I needed something different that would capture all the details. .
I used a pourable silicone material (clear silicone is unavailable) that did not need a degassing chamber as it boasted to not have bubbles. It is a simple 1:1 ratio measured by weight. Use a good digital scale to measure and stir carefully without bringing too much air into the mix. It is translucent so I could see through. Make sure that the mold pour is at least 1/4″ thick and none of the parts are above the silicone. Thicker is better but also more expensive. Make sure everything is level!
Wait for the Magic!
It will take about a half a day to cure depending on the humidity. I like to check the leftover in the mixing cup instead of sticking my finger in the mold. Once cured, it peels back really easily. Maybe I do not need a mold release…
This mix is really easy to use but I am sure many brands are similar. It boasts that there are no bubbles and the only ones I saw are ‘inside’ the mix, not effecting the casting.
These silicone molds are very flexible but strong. They can be washed and cleaned.
Pouring the Concrete:
Congrats! You now have a mold. Once you are happy with the mold, you will need to put it in the shape that you are casting. I placed it in the proper fit frame and make it level.
When mixing the concrete, treat it like plaster by adding the mix to the water. (remember to wear a proper grade dust mask for working with concrete powder) Sprinkle it on top until it does not absorb any more. Give it a minute to let the water penetrate and then mix without adding bubbles. This Rapidset Cementall mix is a quick setting strong mix. There is no aggregate as it is a high strength mix. Another option that seems quite viable is just using portland cement as it is very fine and has no sand. I have yet to test it.
Pour it into the prepared shape with the silicone mold in the bottom. Tap and make sure it has flowed across well. I tap and bang and hit the mold with a rubber mallet so that bubbles can rise. It helps to put the whole frame on a ceramic tile or board so you can pick it up to tap. Bubbles are the enemy!
Lets’ Hang around:

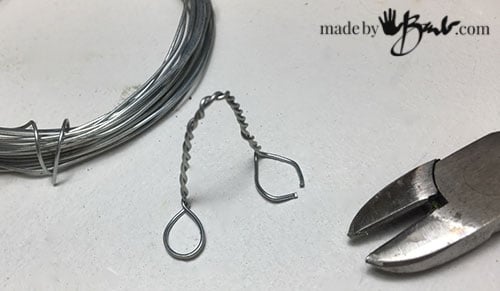

There’s many ways to use these tiles and hanging is probably the easiest. To make a hook I double twist the aluminum wire and curve the ends.
Then bend it into a ‘U’ shape and flatten the ends so it will stand. Sink this into the top area of the tiles concrete when wet and it will stand until cured, then bend as you like to hang on a nail etc.
Ypu can now make as many as you like from this mold. You can also use it for the plaster or Hydrocal. I do use a the Mold release just to be sure.
Ah the circle! It’s a simple shape and has no corners to chip or bang. I think it’s my favourite, but then again I’m quite an orb girl! This is uncoloured Rapidset Cementall which tends to be a light colour mix. You can also tint the concrete with some concrete colour. I’ll admit; I much like the simple grey uncoloured casting as the texture & design are the stars here.
‘But, as an illustrator I do have to try some painting techniques… If you’d like your own I have a few to spare
Even though this is concrete, not cast from the clay it still has great details and texture. I am quite happy with the level of detail the silicone mold has been able to pick up from the ‘master’.
There’s just something about being able to inspect so many fine details. It reminds me of the German B&W macro photographer Karl Blossfeldt. There’s no limit to what you can find… press… cast & mold! No drawing or special skill needed; just your eye for what design you think looks good. Have a go… and let me know how much you love it. Since perfecting the instructions usuallu involves a lot of time & money; check out some that I’d love to share to offset costs.
I love these so much I’m crying. I sold my home and car for health reasons, left 30 years of friends to be closer to my granddaughters and daughter, then covid hit. No friends and no family HOWEVER I DO CRAFT and I just repurchased concrete for a project. Looks like it may go on the back burner and we’ll be doing this if I get to see them. I’m thinking about margarine sized dishes to start with. Thanks for the inspiration. 💖🇨🇦🇨🇦😍💖💖
Yes, thank goodness for ‘art therapy’! I know it keeps me sane (most of the time) Good for you to start small. Just be aware not every concrete mix is the same; I used the Rapidset Cementall. Happy making!
Do you sell molds of your oversized garden faces so I could make one from concrete?
Thank you
Ellen Okeefe
I get that question often. The problem with that is I would have to price it according to the fact that hundreds (maybe even more) could be made from my original sculpture. You can understand that an artist highly treasures their creative property. I do hope you understand.
I am always excited to see an email from madebybarb.com in my inbox. I pour myself a coffee and scroll through your one of a kind collection of beauties.
Thank you so much for taking the time to share with all of us… you truly inspire me to try new things, from someone who struggles to draw a stick man 😂.
Cheers,
Holly
Oh the ‘stick-man-theory’! In my opinion everyone can be creative – they just need some patience and figure what they like… So glad to know there is an audience sitting with me!
What concrete would you use if you were making these as stepping stones?
I would use a very thick (maybe 1.5″) Rapidset Cementall. If there are voids the freezing water in the winter may may them crack I’d test.
These are beautiful, but I’m not sure I understand how to get to the first step. Were the plants “painted” with the plaster, laid in it, or pushed down in wet plaster? Looking forward to creating as soon as I get a better handle on where to start. Thanks for your amazing creations and sharing your knowledge. Dian
I’m afraid you missed the link to first part: casting the plaster from the plants The plants are pressed into a clay and plaster cast, then a mold it made for the concrete in this post. Happy making
hello, congratulations for the excellent content! My question is about your attempt to use cement directly in the plaster mold. Even after waiting for it to dry, sealing the mold and then using the mold releasing agent, the concrete didn’t come out? I want to make molds but I really don’t want to use silicone. Thank you for your attention!
The problem with casting right in the plaster is that both are then rigid, so pulling apart is difficult. If you made a plaster cast from the clay then the concrete you poured would have been a negative? You could do a small test of pouring the concrete right into the clay, as it should be an oil based clay. The problem that I could foresee is that concrete may heat up as it cures., but might be worth a small try.
Hi, what gauge wire is that? I thought if I use something really thick, it might break the concrete when I twist it after the concrete cures, but I wasn’t sure how thin (wire) to go. Thanks – awesome idea and I can’t wait to try it.
You are right, it can’t be too stiff. I do try to get the wire shape formed before embedding so there is less stress and make sure it is deep enough. It is probably about 18- 20 gauge wire, but weight and size should be considered as well.
As the Hydrocal is part Portland cement, can the casting be used outdoors?
Thanks!
I have not seen or tried it outdoors. My intuition tends to think not, as the nature of the final does still feel like plaster product. The concretes get so hard that they can not be scratched, whereas the plasters can be carved and scratched.
